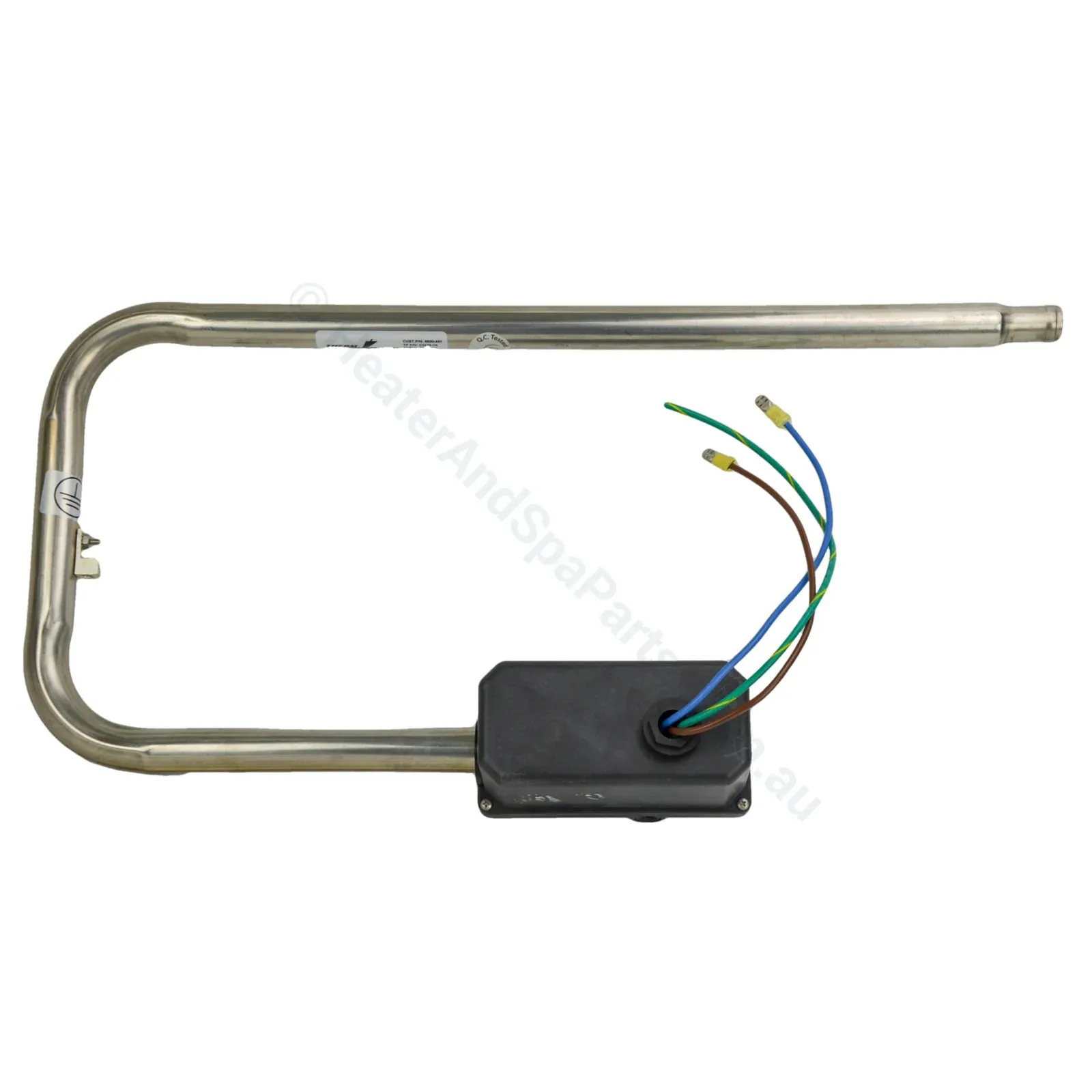

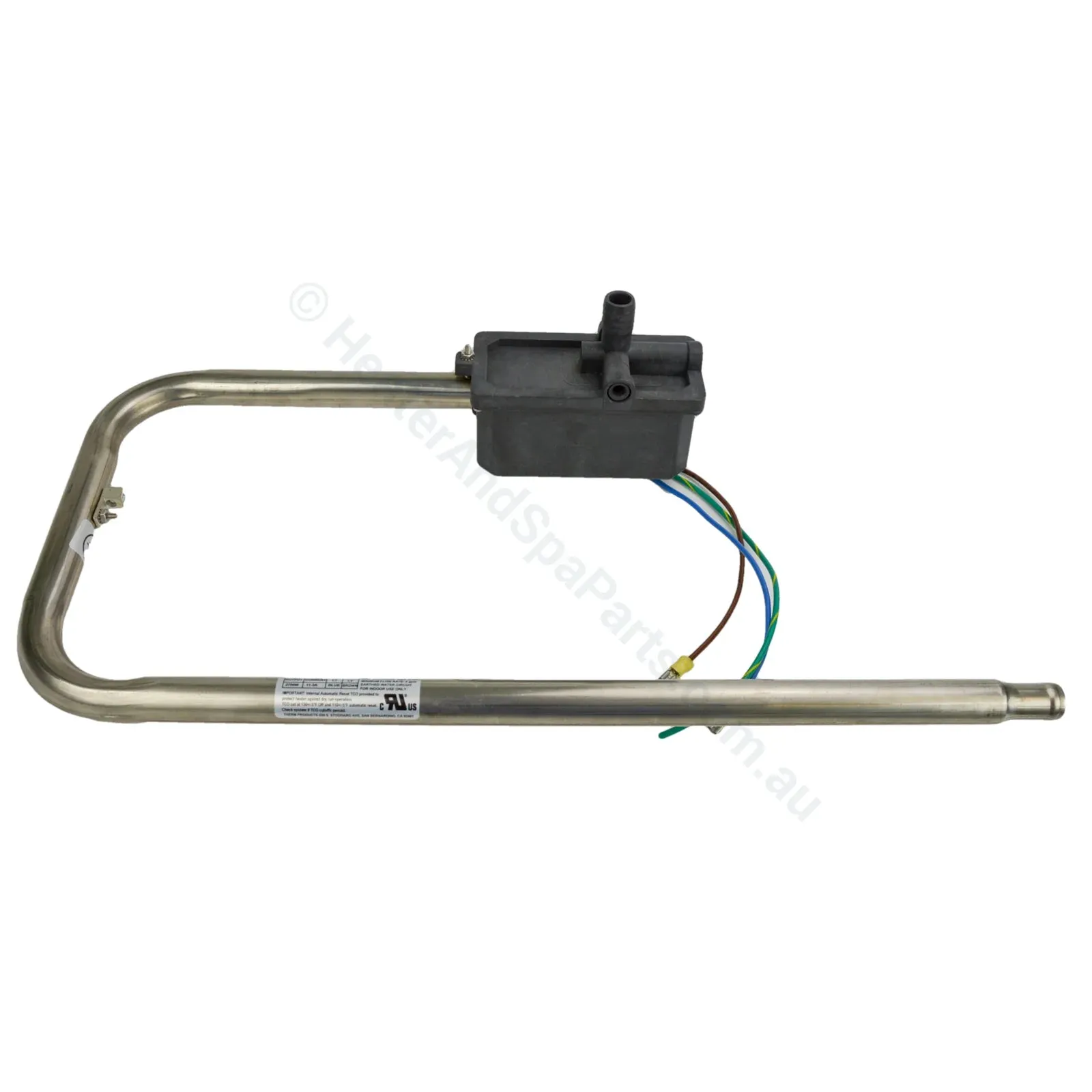

2.7kw circulation style universal titanium heater replacement with threaded pressure switch tap ( sold seperately) to suit Gecko Electronics SSPA, MSPA-MP spa packs and many other circulation heater applications. aka Trombone style heater.

Can be used to replace similar discontinued heaters in varying shapes and kilowatt ratings from 2.0-5.2kw in most applications where the power supply permits.

Minimum power supply required will be at least 15A - some 2.0kw units were fitted on 10A leads. This heater cannot be used without upgrading power supply to 15A

Includes:

• Internal mechanical thermal hi limit
• Pressure switch tap (fitted with threaded plug). A pressure switch can be fitted.

More Info:

• Can be used with in-line flow switch or a pressure switch can be threaded in.
• 3/4" barbed connections for clear tubing

• Can be used on LA Spas, Heritage Spas, Lanark Spas, Southwest Spas, Sierra Spas, Sundance Spas, Jacuzzi Hot Tubs and many others

• Can be used to replace Gecko MSPA-MP heaters if a remote hi-limit is fitted/soldered to pcb if existing high-limit is in a foam poron strap.

• C3478-1A, 6500-401, SEH-2700-NHC, L6697

• 2.7kw, 230v
• Original heater power supply cord will need to be re-used / wired to heater terminal box.
